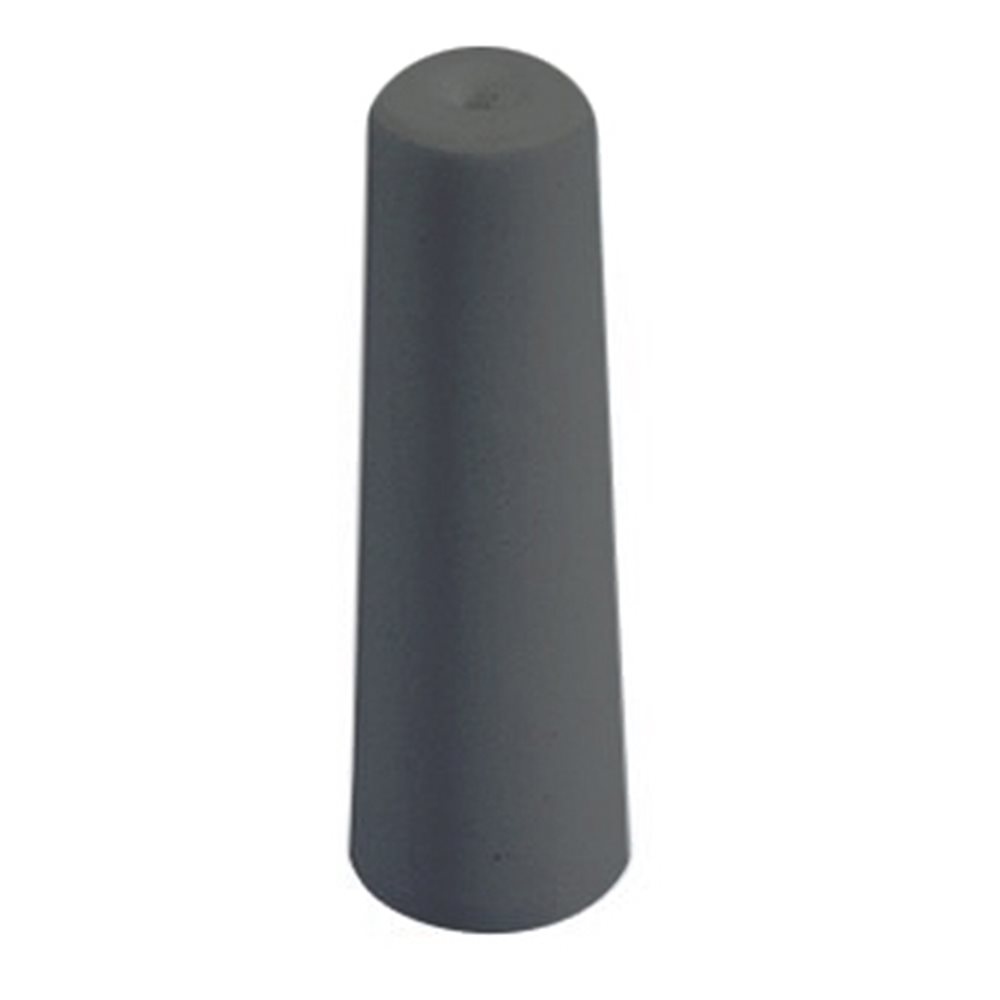

Glastar - Carbide Nozzle - 1.6mm

Carbide nozzles last 10 times longer than ceramic nozzles.
Saves time when blasting: not having to stop and replace nozzles.
Carbide nozzles are ideal for &39;non-stop&39; blasting operation and very economical in the long run.

CA Sandblasting Nozzle constricts the high pressure stream of abrasive at the end of the hose and directs it at the project. The abrasive rushing through the nozzle enlarges the hole, and eventually, it must be replaced. The length of time a nozzle can be used depends on whether it is ceramic or tungsten carbide and how much air your compressor can produce.

Nozzle Size

CFM / LPM

at 40 PSI

CFM / LPM

at 60 PSI

CFM / LPM

at 80 PSI

Compressor at 80 PSI

1/16" /   1.6mm

2 cfm /  57 lpm

3 cfm /  85 lpm

4 cfm /113 lpm

2HP

3/32" /   2.4mm

5 cfm /142 lpm

7 cfm /198 lpm

9 cfm /255 lpm

3-5HP

1/8"   /   3.2mm

9 cfm /255 lpm

13 cfm/368lpm

17cfm/481 lpm

5HP



Air required for continuous blasting at a given nozzle aperture



As you see from the above chart, if you start with a 1.6mm nozzle blasting at 40 PSI (typical glass sand blasting pressure) by the time the aperture has worn to 2.4mm you would already be beyond the capacity of a 2 HP compressor and would have to replace the nozzle. So, the larger your compressor, the longer the useful life of a particular size nozzle.
